Deepcool E-Shield Mid Tower Computer Case with EATX support and side Tempered Glass
Product Description
Deepcool E-Shield Mid Tower Computer Case with EATX support and side Tempered Glass
* Supports up to E-ATX motherboard.
* Supports installation of 120/140/240/280/360mm radiator liquid cooling system at front (360mm radiator without CD-ROM installed).
* Supports installation of 120/140/240mm radiator liquid cooling system on top (240mm radiator without CD-ROM installed).

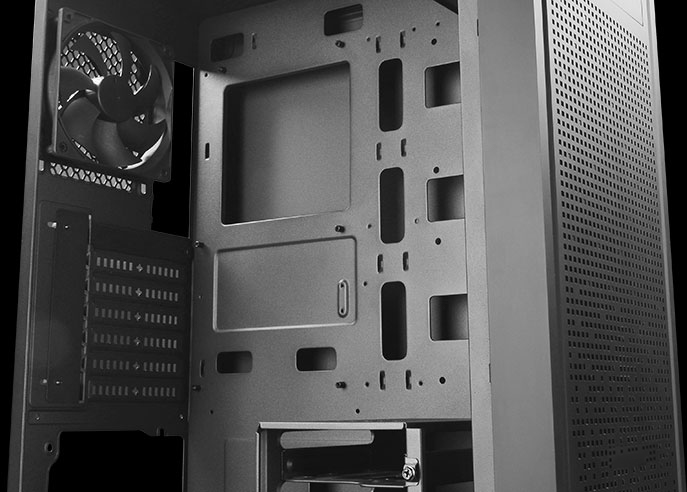

* Supports installation of 120mm radiator liquid cooling system at rear.
* Supports 370mm (MAX) long Graphics Card installation.

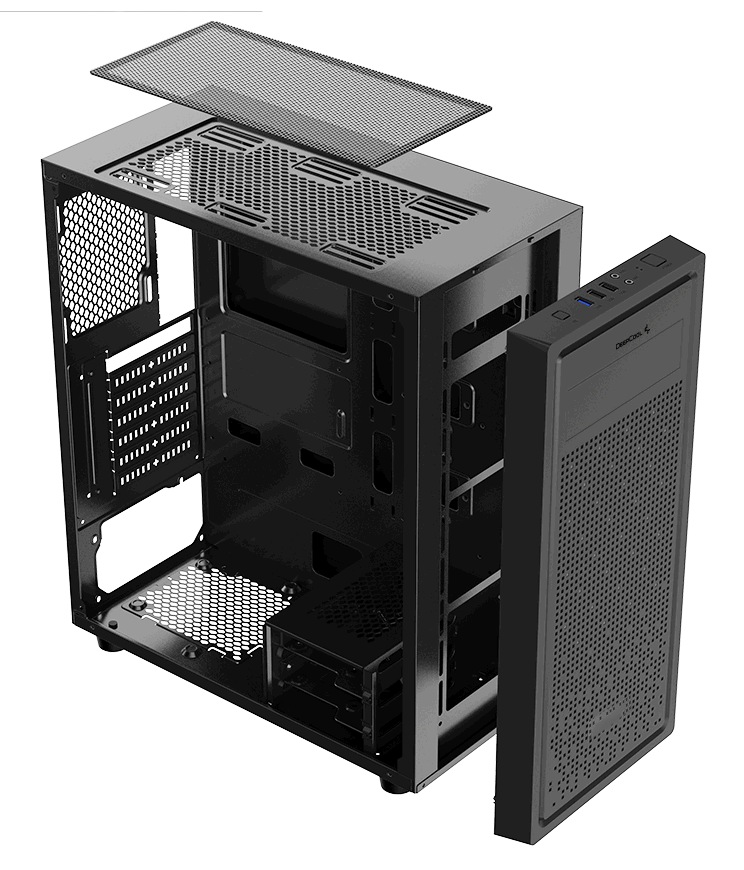

* Magnetic dust proof net on top, easy for cleaning.

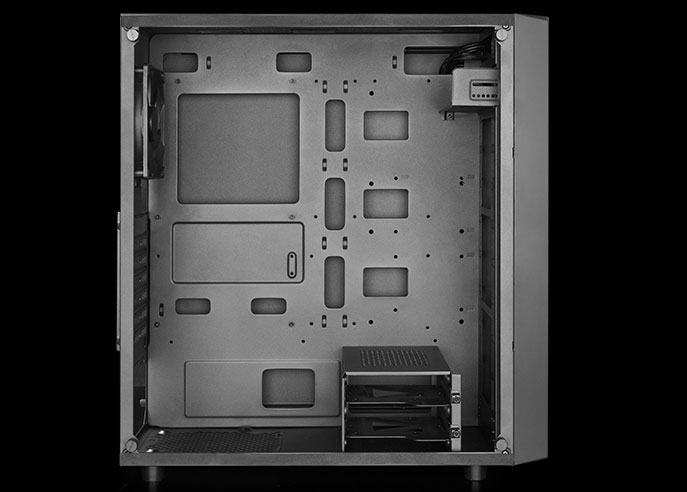

* Friendly designed internal structure for easy installation.
* 4mm thick tempered glass side-panel.

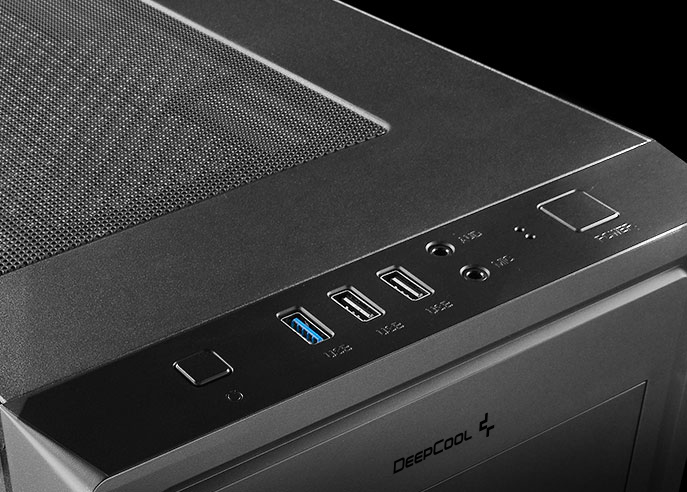

* 1×USB 3.0 +2*USB 2.0 Ports.

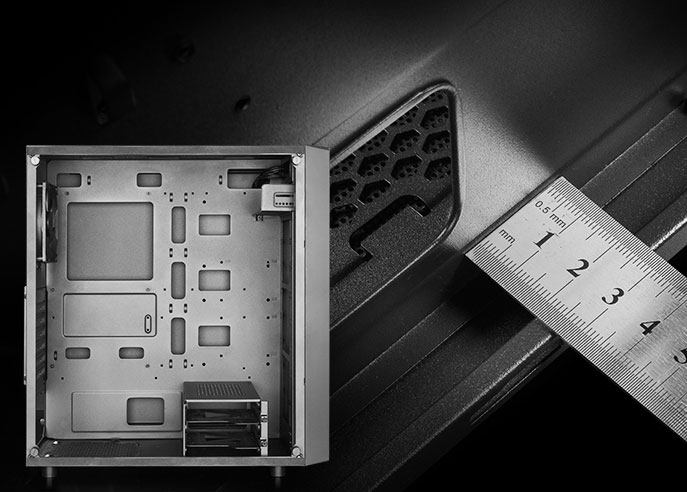

* 25mm clearance for cable management.
Technical Spec
Motherboards | E-ATX(Without CD-ROM) /ATX/Micro ATX/Mini-ITX |
Materials |
ABS+SPCC(Panel thickness: 0.6mm)+Tempered Glass (4mm) |
Case Type | Middle Tower |
Product Dimension(LxWxH) |
438×210×477mm |
Gross Weight | 7.34 kg |
Net Weight |
6.36 Kg |
5.25" Drive Bays | 1 |
3.5" Drive Bays | 2 |
2.5" Drive Bays | 2+2 |
I/O Panel | 1×USB3.0/2×USB2.0/1xAudio(HD)/1xMic |
Expansion Slots | 7 |
Cable Management | 25mm clearance |
Cooling Fans |
Pre-installed: Rear: 1×120mm fan; Optional: Front: (Without CD-ROM installed) 3×120mm or 3×140mm; (With CD-ROM installed) 2×120mm or 2×140mm, Top: 2×120/140mm |
Liquid Cooler Support |
Front: 120/140/240/280/360mm(280/360mm without CD-ROM); Top: 120/140/240mm; Rear: 120mm |
Power Supply Type |
ATX PS2 (Length less than 170mm) |
CPU Cooler Height Limit | 168mm |
VGA Length Limit |
370mm |
Carton Dimension (LxWxH) | 523×277×514mm |
EAN | 6933412713647 |
P/N | P/N:DP-ATX-E-SHIELD |
Product Dimension




2×120mm or 2×140mm (with CD-ROM installed)


Power Supply: ATX PS2 (Length less than 170mm)

clearance for cable management
