Deepcool Explorer DE530 Power Supply 530W

₹4,000.00 ₹3,100.00
(You save ₹900.00)

Deepcool Explorer DE530 Power Supply 530W

₹4,000.00 ₹3,100.00
(You save ₹900.00)
SKU:
DE530
Weight:
3.00 KGS
Shipping:
Free Shipping
Share

Product Description

Deepcool Explorer DE530 Power Supply 530W



Compliant Intel ATX2.31
120mm silent fan with PWM function
CircuitShield™ — Over Voltage Protection (OVP), Short Circuit Protection (SCP), Over Power Protection (OPP)
Applying the latest unleaded production technics, compliant to RoHS standard
High reliability with an MTBF of at least 100,000 hours of use
High cost-performance


Technical Spec
Model DE530
Type ATX 12V V2.31
Dimension 150×140×86mm (W x L x H)
Output Capacity 400W
Input Voltage 160~240V
Input Current 4A
Input Frequency Range 47~63Hz
Fan Size 120mm silent fan with PWM function
Power Good Signal 100-500ms
Hold Up Time  >16ms
Protection OVP / UVP / SCP / OPP / OPP
Operation Temperature 0~40°C
Regulatory CE / CB / EAC / TUV
MTBF 100,000 Hours



AC INPUT VOLTAGE CURRENT FREQUENCY
230V 4.0A 47-63Hz
DC OUTPUT +3.3V +5V +12V1 +12V2 -12V +5VSB
CURRENT(Max) 24A 17A 16A 16A 0.3A 2A
OUTPUT(Max) 120W 360W 3.6W 10W
TOTAL OUTPUT 400W
PEAK POWER 530W

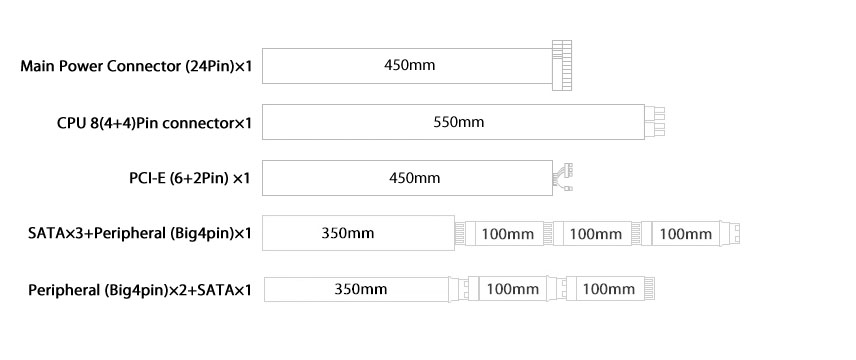

Mainboard (24pin) ATX12V (4+4pin) PCI-E (6+2pin)
1 1 1

SATA Peripheral (Big4pin)
4 3
