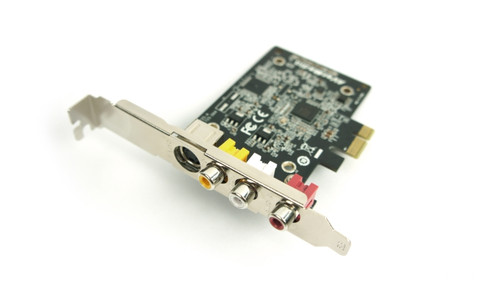

AverMedia Ezmaker SDK Express (C725)

• AVerMedia EZMaker SDK Express guarantees fast response and solid performance with its advanced hardware design and customizable software development kit while promising ease-of-use user experience. Featuring S-Video, composite and stereo audio inputs, EZMaker SDK Express allows you to record videos from various video equipment and digitize the analog videos with optimal quality.







  EZMaker SDK Express supports NTSC, PAL and SECAM video standard that ensures the flexibility and capability of grabbing contents from a wide range of video sources. Furthermore, the full DirectShow compatibility enables EZMaker SDK Express natively work with popular professional video editing software. This feature empowers you to capture or edit your own video directly on the software you are most skilled in without further study. Even better, AVerMedia has prepared you a comprehensive and powerful SDK, which can work with multiple programming languages, to help you easily build the features you need.









  Interface	PCI-E 1X
  Input	S-Video  Composite (RCA) Audio (L/R)
  Input Video Resolution	160×120 / 176×144 / 240×180 / 240×176 320×240 / 352×240 / 352×288 (PAL only) 640×240 / 640×288 / 640×480 704×576 (PAL only) / 720×240 / 720×288 720×480 / 720×576 (PAL only)
  Capture Video format	NTSC: 720*480, PAL: 720*576
  Pixel Format	YUY2(4:2:2), UYVY (4:2:2), RGB24 (4:4:4)
  Color Adjustment	Brightness, Contrast, Hue, Saturation, Sharpness
  Multi-Card Support	Yes (up to 8 pcs)
  Programming Language	Visual Basic, Visual C++, Delphi, C#, VB.NET
  SDK Framework	General DLL
  Operating Environment	Temperature: 0 to 65 ℃ Humidity: 15 to 80% RHNC
  Storage Environment	Temperature: -30 to 65 ℃ Humidity: 15 to 90% RHNC
  Power Requirement	3.3V max 400mA
  Dimensions (mm)	93.5 (L) x 68.78 (W) x 1.57(H)
  CPU	-Intel® Pentium® 4 3.0 GHz -AMD Athlon™ 64 3200+
  Memory	512 MB RAM
  VGA	VGA card with support for DirectX9.0c or above
  Sound Card	Yes
  Operating System	Windows® 8/7/Vista™/XP (32/64-Bit)
  3rd Party S/W Support	• Telestream Wirecast  • Adobe Flash Media Live Encoder 3 • UStream Producer  • XSplit  • Microsoft Windows Media Encoder 9 • Microsoft Express Encoder  • GraphEdit • AMCap • Corel VideoStudio • CyberLink PowerDirector • CyberLink PowerProducer • Real Producer (v13) • VLC Media Player • Any application which need Direct Show compliance device
