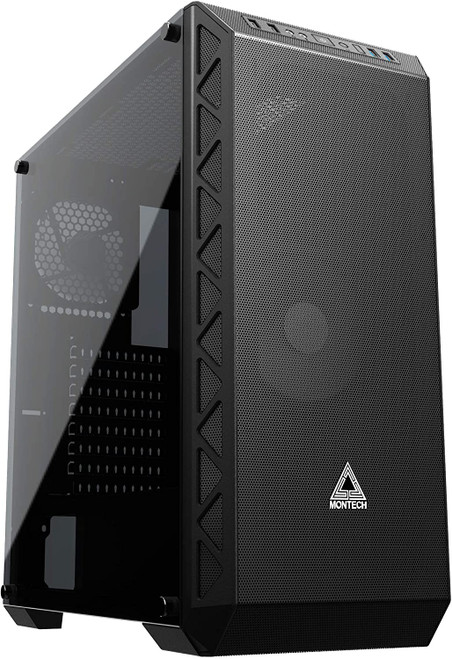

Air 900 MESH

UNIQUE · VISION

Full mesh front

Extreme airflow

Wide case size

Dual USB2.0+ Dual USB3.0

Support for multiple hard drive storages

Unique Vision

The Air 900 mesh is designed with many innovative concepts, it incorporates industrial looks and gaming factors at the same time. Airflow is maximized by incorporating metal mesh front panel, top panel ventilation, and rear exhaust.

Fine Metal Mesh Front Panel

The Air 900 mesh uses full metal mesh front panel to maximize high airflow.

Extreme Airflow Design

 Airflow is maximized by incorporating metal mesh front panel, top panel ventilation, and rear exhaust. Also, the two silent fans pre-installed makes the cooling performance even better.

With A Slope Of 50 Degrees

With a slope of 50 degrees, it prevents dust falling in directly and reduce the chance for inadvertent touches to the power button.

Dual USB Design

   USB2.0*2
   USB3.0*2

Two Silent Sans

With the pre-installed two silent fans at the front and rear, the Air 900 ensures high cooling performance while operating quietly.

Tempered Glass Side Panel

Gaming hardware, custom water cooling, RGB fans, perfectly present the excellent works of the PC builder

Versatile Cooling Options

Fan Support
   Top 120mm*2/140mm*2
   Front 120mm*3/140mm*2
   Top 120mm*2/
   Rear 120mm*1

Radiator Support
   Top 120/240mm
   Only support the DRAM in standard specifications.
   Please note that the DRAM with the cover is not compatible.
   Front 120/240/360mm
   Rear 120mm

Motherboard Support
​   E-ATX
​   ATX
   Micro - ATX
   Mini-ITX

Drive Bays
   3.5" HDD*2
   2.5" SSD*5

Clearance
   PSU~190mm
   CPU~165mm
   VGA~370mm

Magnetic Dust Filter

The magnetic dust filters at the front and the top can easily be removed when cleaning.
Moreover, the bottom dust filter set with latches, makes it stable and easy to be removed.

Clear Cable Management

Large space behind motherboard plate with rubber grommets and velcro cable ties achieve great cable management.

Removing The Front Panel

1. Lay the case down on it's side.
2.Hand into the bottom space between the front plate and the body.
3.Remove the panel by "pulling" from the case.

Specifications

​
